Kinematic analysis of four bar by means of polar diagrams
- Author:
- Ettore Pennestri'

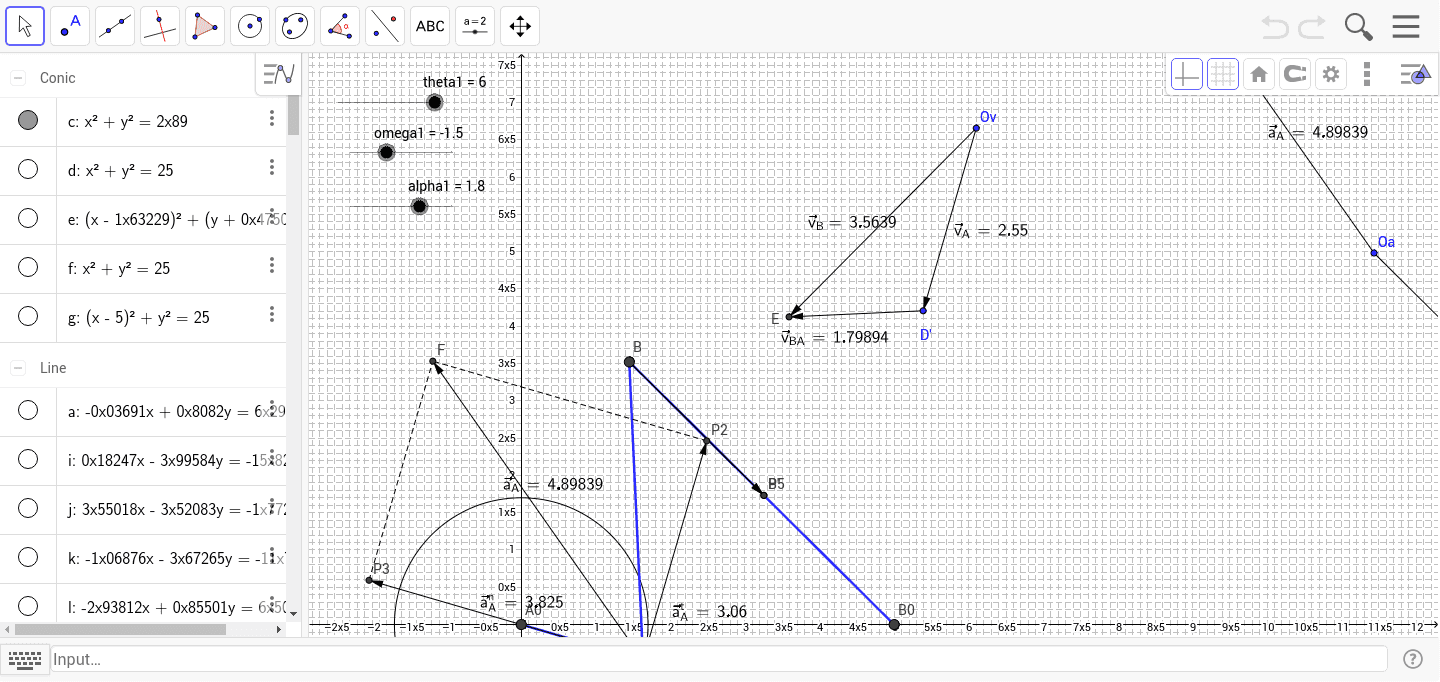

Kinematic analysis of a four bar linkage by means of polar diagrams.
You can change the link lengths L1, L2, L3 and L4.
theta1: Angular position of driving link
omega1: Angular speed of driving link
alpha1: Angular acceleration of driving link
