Monge Projection of the Cube

Author:
Šárka Voráčová
Topic:
Constructions, Cube

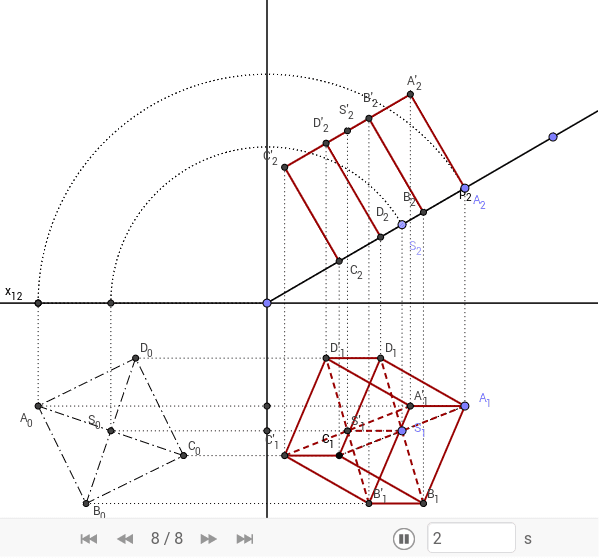

Construct the cube with one side in plane perpendicular to the projection plane. Centre S and vertex A of this side is known. Hint: Use the special position of the cube. Constract the true shape (square) of the side by revolving it's plane.
