ICR-s of the Slider-Crank

Observe the determination of the ICR (Instan Centers of Rotation) of a piston rod crank mechanism

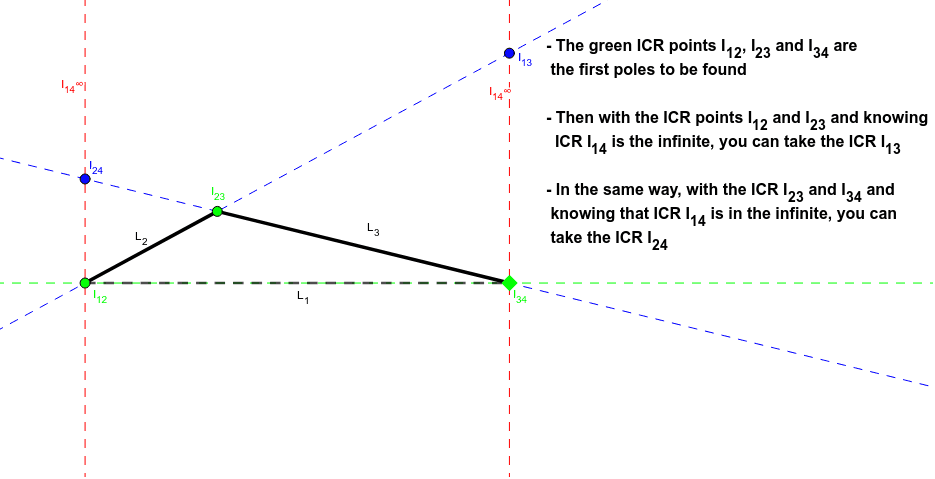

- Move the point I23 and observe how the position of the ICR points I13 and I24 changes -The green ICR points I12, I23 and I34 are the first poles to being found - Then with the ICR points I12 and I23 and knowing that ICR I14 is the infinite, you can take the ICR I13 - In the same way, with the ICR points I23 and I34 and knowing that ICR I14 is in the infinite, you can take the ICR I24
