Points of Concurrency

Author:: powere, Matthew Desjardins

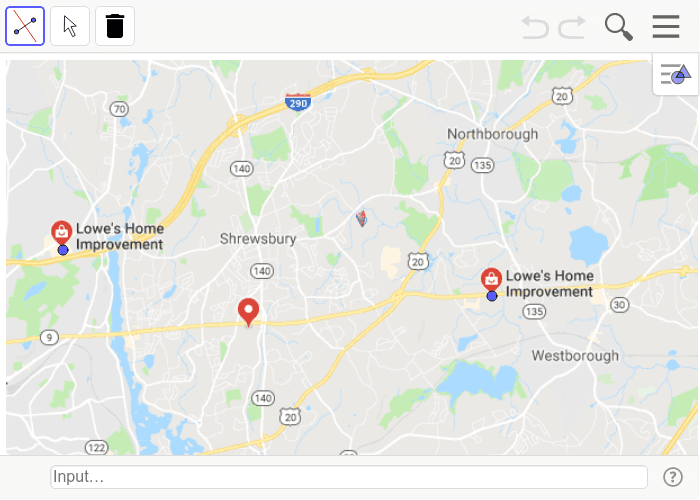

Find the perpendicular bisector between the two Lowe's locations.

This third red dot represents a different chain. Recall that the perpendicular bisector helps find equidistance between points, in this case the Lowe's stores. Your perpendicular bisector should nearly pass through this store. What store do you think this is? Why would they put it here?

Check my answer

Perpendicular Bisectors, Circumcenter, and Circumcircle

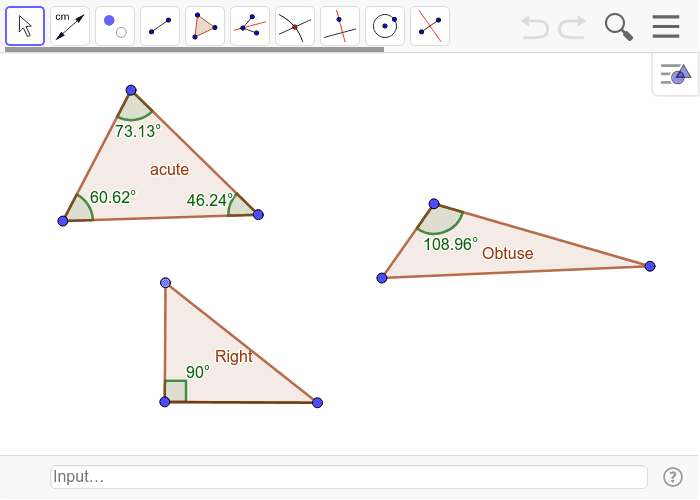

Construct the 3 Perpendicular Bisectors of each triangle Construct the point of concurrency (circumcenter which is the intersection of the three lines) for each triangle. Construct the Circumcircle (center at the circumcenter and passing through the vertices).

The Circumcenter (point of intersection of the 3 perpendicular bisectors) is located __________________.

Select all that apply

A
inside acute triangles, outside obtuse triangles, and on the hypotenuse of right triangles
B
inside all triangles
C
outside all triangles

Check my answer (3)

Angle Bisectors, Incenter, and Incircle

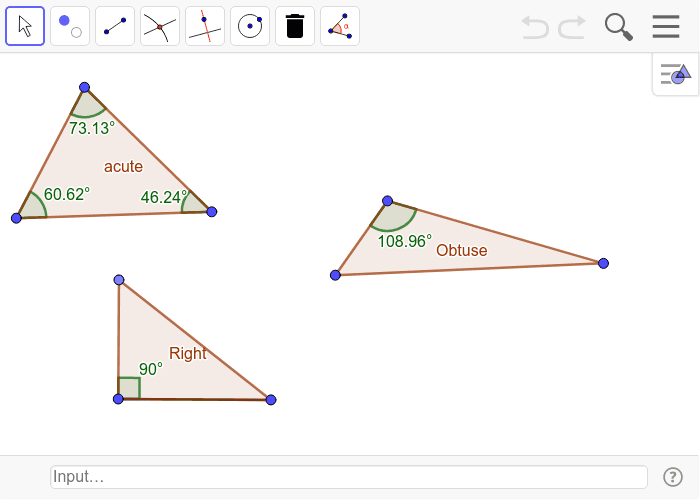

Construct the 3 Angle Bisectors of each triangle Construct the point of concurrency (incenter which is the intersection of the three lines) for each triangle. Construct the perpendicular line from the incenter to one of the sides. Mark the intersection at the right angle where the two lines meet. Construct the Incircle (center at the incenter and the point identified on the last step).

The Incenter (point of intersection of the 3 angle bisectors) is located __________________.

Select all that apply

A
inside acute triangles, outside obtuse triangles, and on the hypotenuse of right triangles
B
inside all triangles
C
outside all triangles

Check my answer (3)

Medians and centriods

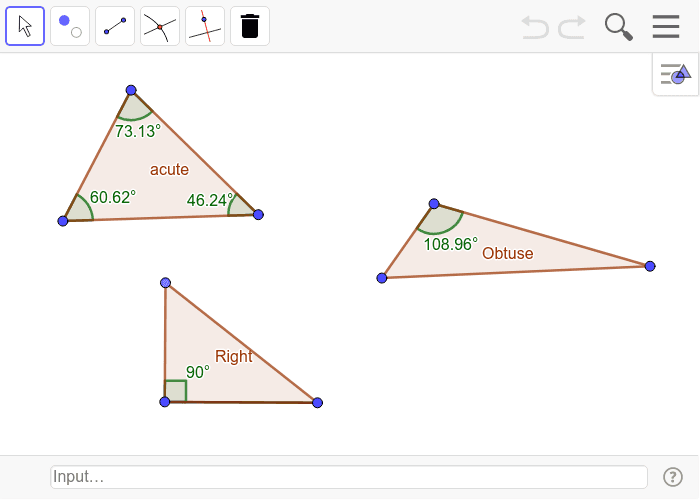

Construct the 3 Medians of each triangle (find the midpoint of each side and connect to the opposite vertex. For Triangle ABC, mark the centroid (point of concurrency) as point X and the intersection on SegmentBC as point Y. Measure AX Measure XY. Calculate 2*XY. What do you notice? For Triangle DEF, mark the Centroid

The Centriod (point of intersection of the 3 medians) is located __________________.

Select all that apply

A
inside acute triangles, outside obtuse triangles, and on the hypotenuse of right triangles
B
inside all triangles
C
outside all triangles

Check my answer (3)

Altitudes and Orthocenters

Construct the 3 Altitudes of each triangle (Perpendicular from a vertex to the opposite side) Construct the point of concurrency (orthocenter: which is the intersection of the three lines) for each triangle.

The Orthocenter (point of intersection of the 3 Altitudes) is located __________________.

Select all that apply

A
inside acute triangles, outside obtuse triangles, and on the right angle of right triangles
B
inside all triangles
C
outside all triangles

Check my answer (3)
