Compound Boolean Statements

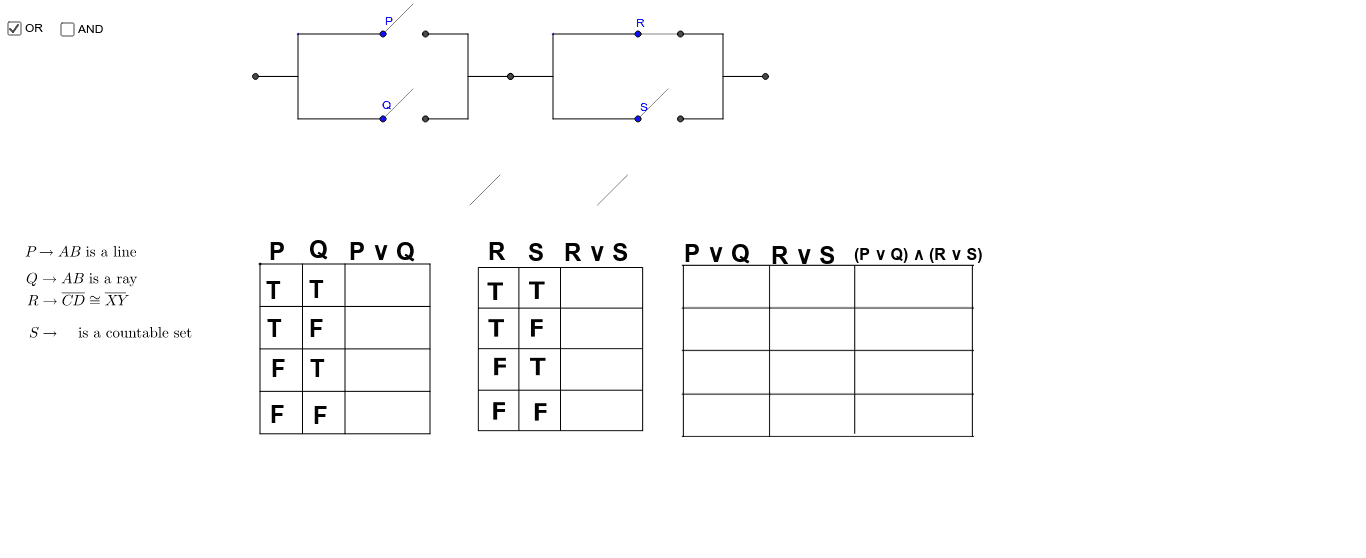

Analyzing Compound Boolean Statements with Truth Tables and Switches Template for illustrating truth values of compound Boolean statements. Write your own statements for propositions P through X that make sense given the switches and truth tables. Click on the switches to open/close and fill in truth tables with corresponding T/F values.
Connections to digital logic design, dc circuit analysis, program flow control statements
