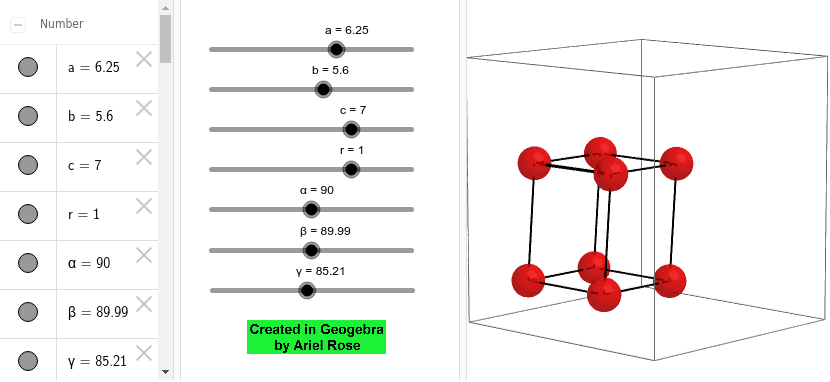

Below is an interactive model of a single unit cell with adjustable lattice parameters and calculated plane areas for various Miller indices.
Adjust side length and angle parameters using sliders or numerical input to investigate the geometries of different unit cells. Click on the circles beside the Miller index quadrilateral planes to view each plane in 3D. Adjust the radius to emphasize or de-emphasize corner atoms.
