Scott-Russel slider-crank

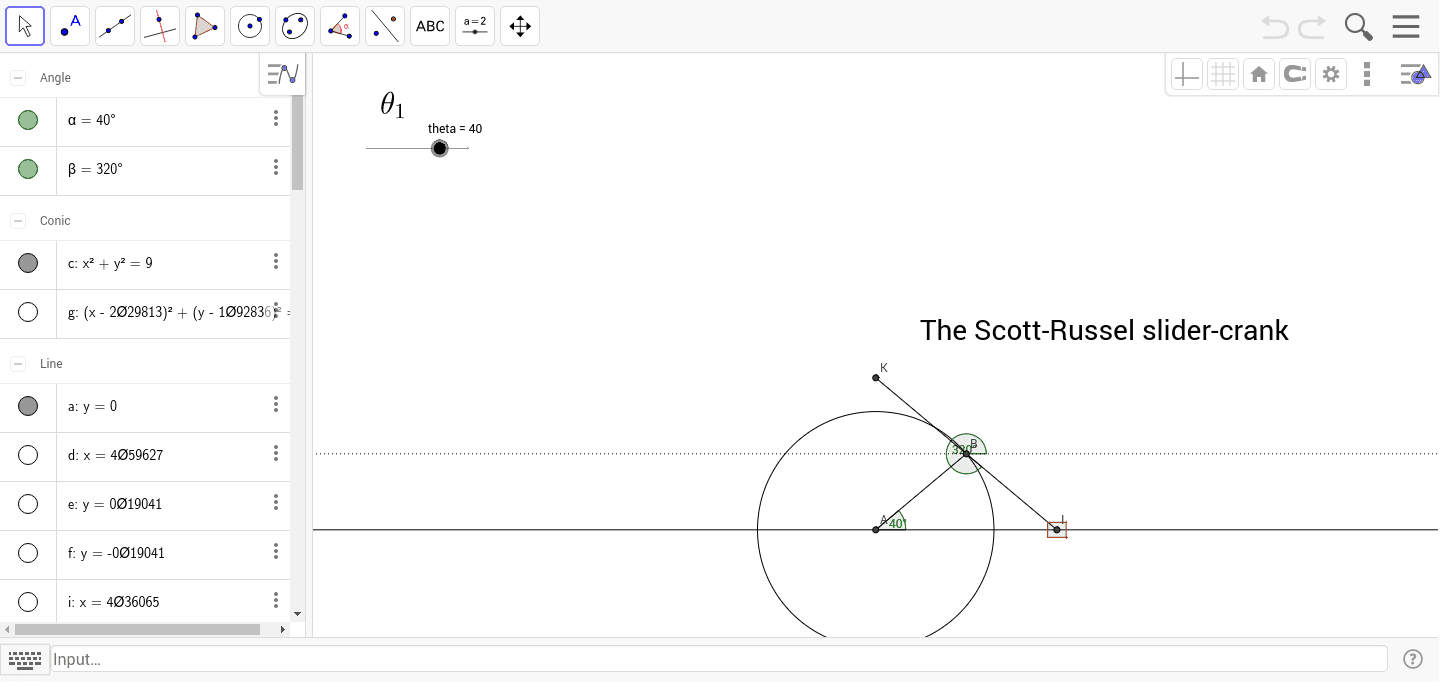

The Scott-Russel slider-crank.
The coupler curve describes an exact straight line. The motion of the coupler is Cardanic, i.e. the polodes are two circles and the moving polodes with radius r rolls inside a fixed polode whose radius is 2r.
