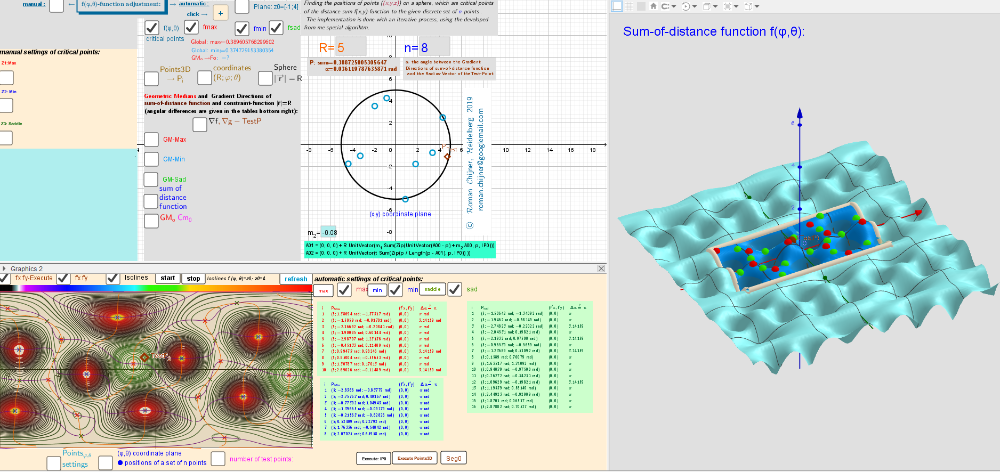

n=8 Square antiprism(anticube). Images: A critical points scheme for Generating uniformly distributed points on a sphere

Author:
Roman Chijner
Topic:
Algebra, Calculus, Circle, Difference and Slope, Differential Calculus, Differential Equation, Equations, Optimization Problems, Geometry, Function Graph, Intersection, Linear Programming or Linear Optimization, Mathematics, Sphere, Square, Surface, Vectors
[size=85]A system of points on a sphere S of radius R “induces” on the sphere S0 of radius R0 three different sets of points, which are [color=#93c47d]geometric medians (GM)[/color] -local [color=#ff0000]maxima[/color], [color=#6d9eeb]minima[/color] and [color=#38761d]saddle[/color] points sum of distance function f(x). The angular coordinates of the spherical distribution of a system of points -[color=#0000ff] local minima[/color] coincide with the original system of points.[/size]
A system of points on a sphere S of radius R “induces” on the sphere S0 of radius R0 three different sets of points, which are geometric medians (GM) -local maxima, minima and saddle points sum of distance function f(x). The angular coordinates of the spherical distribution of a system of points - local minima coincide with the original system of points.

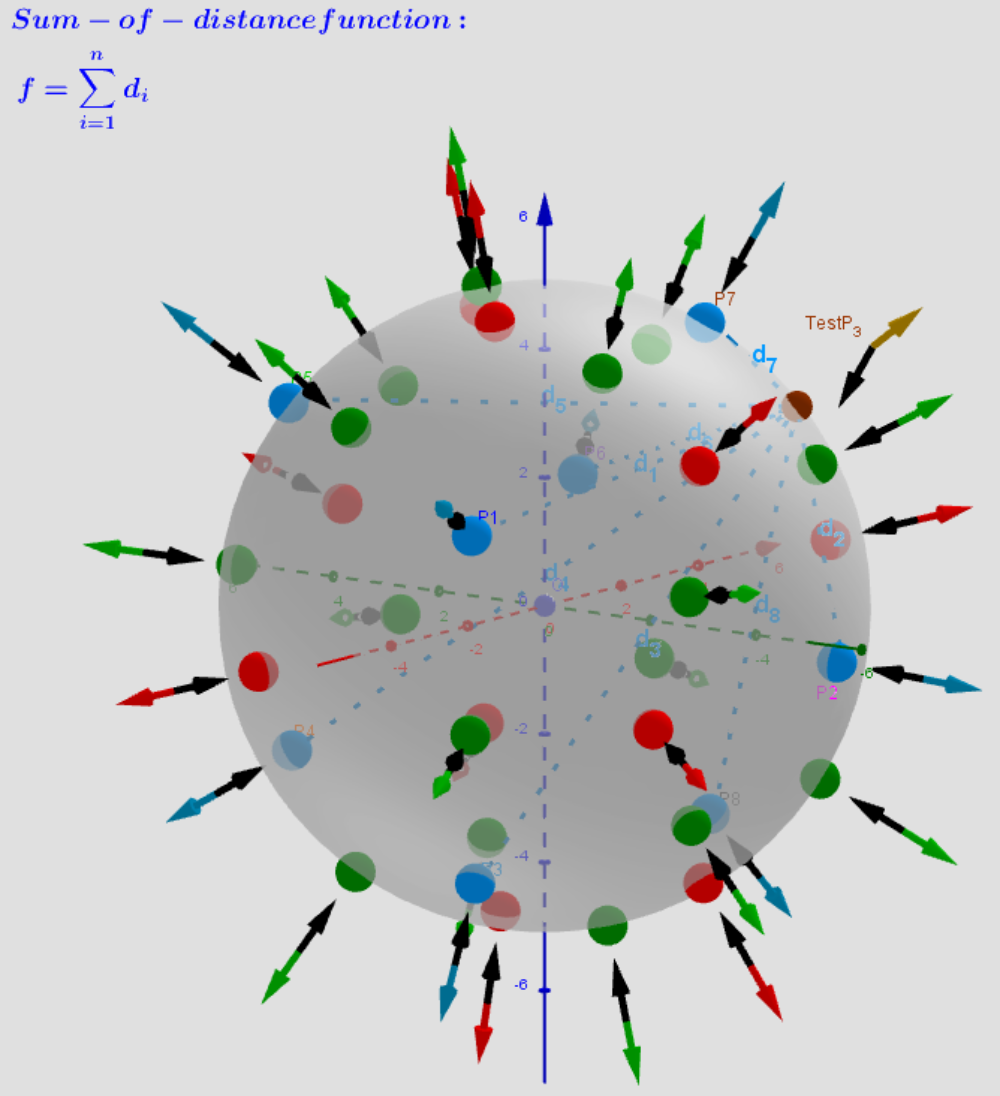

Distribution of points P[sub]i, [/sub][color=#5b0f00]test Point[/color][sub], [/sub] [color=#ff0000]Max[/color]/[color=#0000ff]min[/color]/[color=#38761d]saddle[/color] -[color=#333333]Critical points[/color] on a sphere. Vectors ∇f and ∇g at these points.
Distribution of points Pi, test Point, Max/min/saddle -Critical points on a sphere. Vectors ∇f and ∇g at these points.

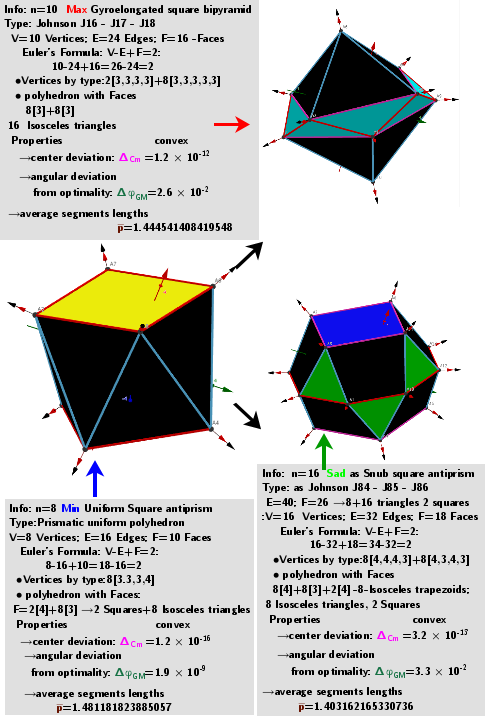

[color=#ff0000]max:[/color] Gyroelongated square bipyramid  [color=#0000ff]min:[/color] Anticube  [color=#6aa84f]sad:[/color] Octagonal Antiprism
max: Gyroelongated square bipyramid  min: Anticube  sad: Octagonal Antiprism
Two-variable  function f(φ,θ) over a rectangular region: - π ≤φ ≤ π; -π/2≤θ≤π/2.
Two-variable  function f(φ,θ) over a rectangular region: - π ≤φ ≤ π; -π/2≤θ≤π/2.

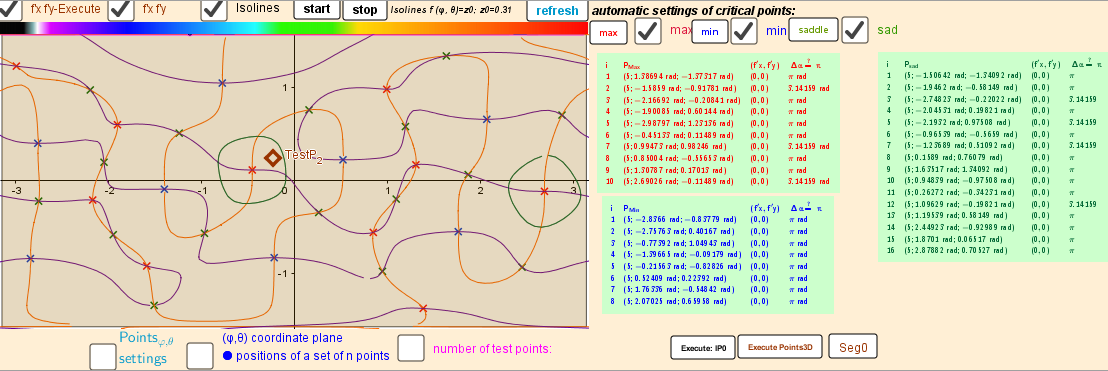

Intersection points of implicit functions over a rectangular region: - π ≤φ ≤ π; -π/2≤θ≤π/2.
Intersection points of implicit functions over a rectangular region: - π ≤φ ≤ π; -π/2≤θ≤π/2.

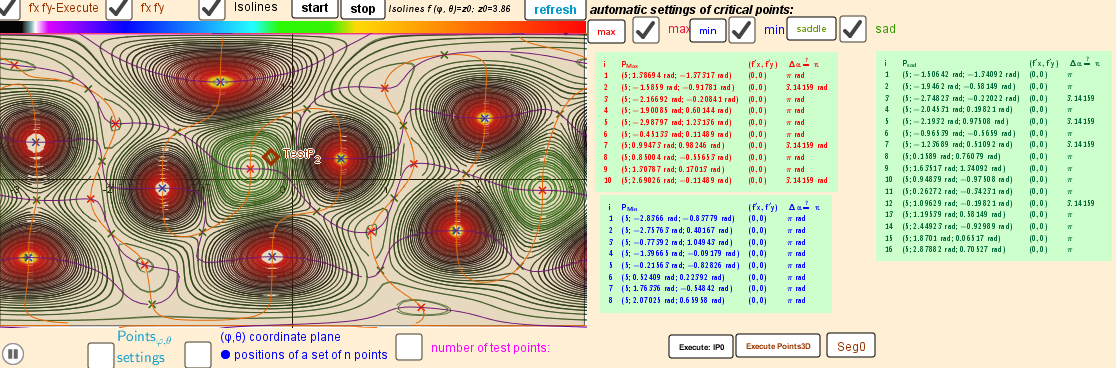

Isolines and Intersection points of implicit functions over a rectangular region: - π ≤φ ≤ π; -π/2≤θ≤π/2.
Isolines and Intersection points of implicit functions over a rectangular region: - π ≤φ ≤ π; -π/2≤θ≤π/2.
