Trigonometric functions as segments
- Susan Addington

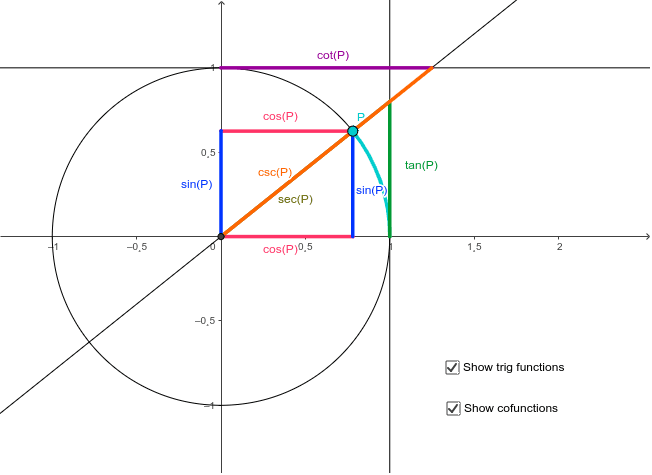

Drag P to change the angle.
Until the 20th century, trigonometric functions were conceived as the lengths of certain line segments associated with a point moving on a circle. The names of the function describe the geometry. Start with a point P on the circle, the radial line, through P and the center of the circle, and the perpendiculars through P to the x and y axes. The tangent of P is the segment of the tangent line to the circle at (1,0) cut off by the radial line. ("Tangent" is Latin for "touching.") The secant of P is the segment of the radial line cut off by the tangent line. ("Secant" is Latin for "cutting.") The sine of P is the half the chord parallel to the tangent. ("Sine" is a Latin mistranslation of the Arabic word for "half chord.") The "co-" in the cofunctions means the functions for the complementary angle to the angle between the x axis and the radial line. That is, to get the cofunctions, switch the roles of the axes and use the same constructions.
