Single Bend Normal Fault Below Rollover Fold
- Andreas Plesch

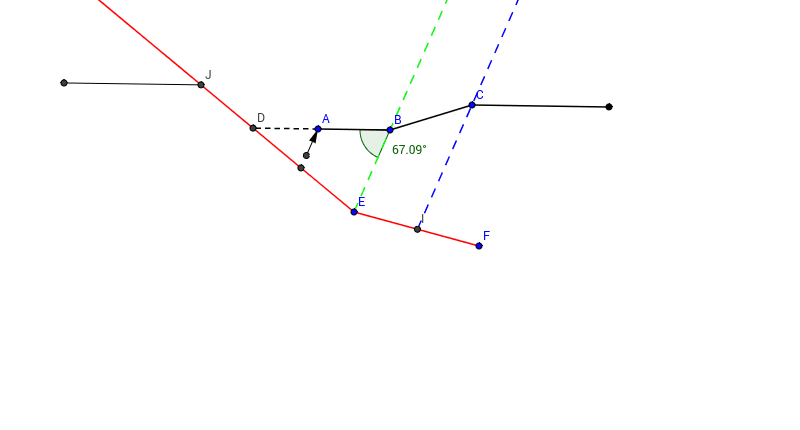

Single Bend Normal Fault Below Rollover Fold (after Xiao and Suppe)
The interactive construction allows for modifying the fold shape by moving the blue dots. The shear angle as well as the amount of slip can also be modified. Watch how the fault bend adjusts to the fold geometry.
