Root Locus Development (or Construction)
- Author:
- wcolmen
- Topic:
- Root
Root Locus Construction for a Simple System

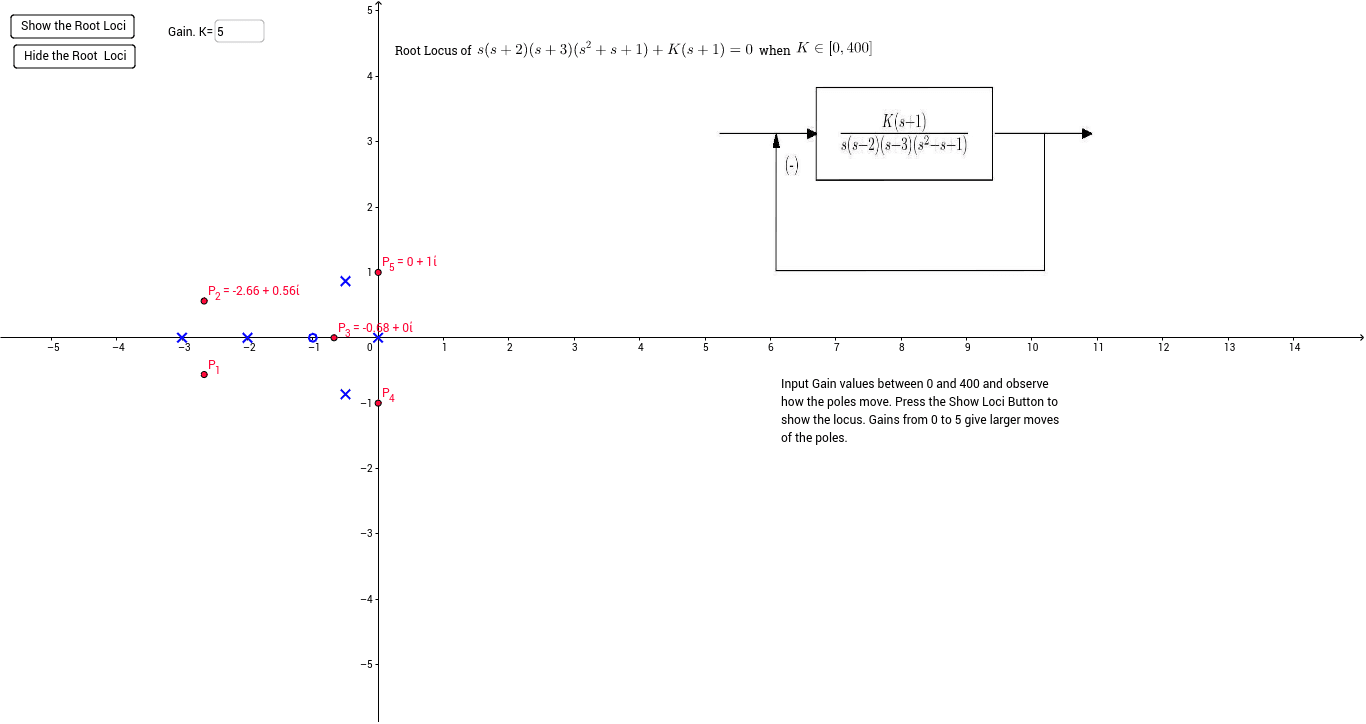

Please input different Gain and see what happens with the poles. ¿Can you anticipate how the Root Locus will be?. Gains between 0 and 5 give larger pole movement in the graph. Gain must be a value between 0 and 400.
Once you've gotten enough roots (poles) (so you have an idea how the Locus will be), click om the Show Locus button. ¿Is it as You've expected?
