Forge with Peaucellier's bars

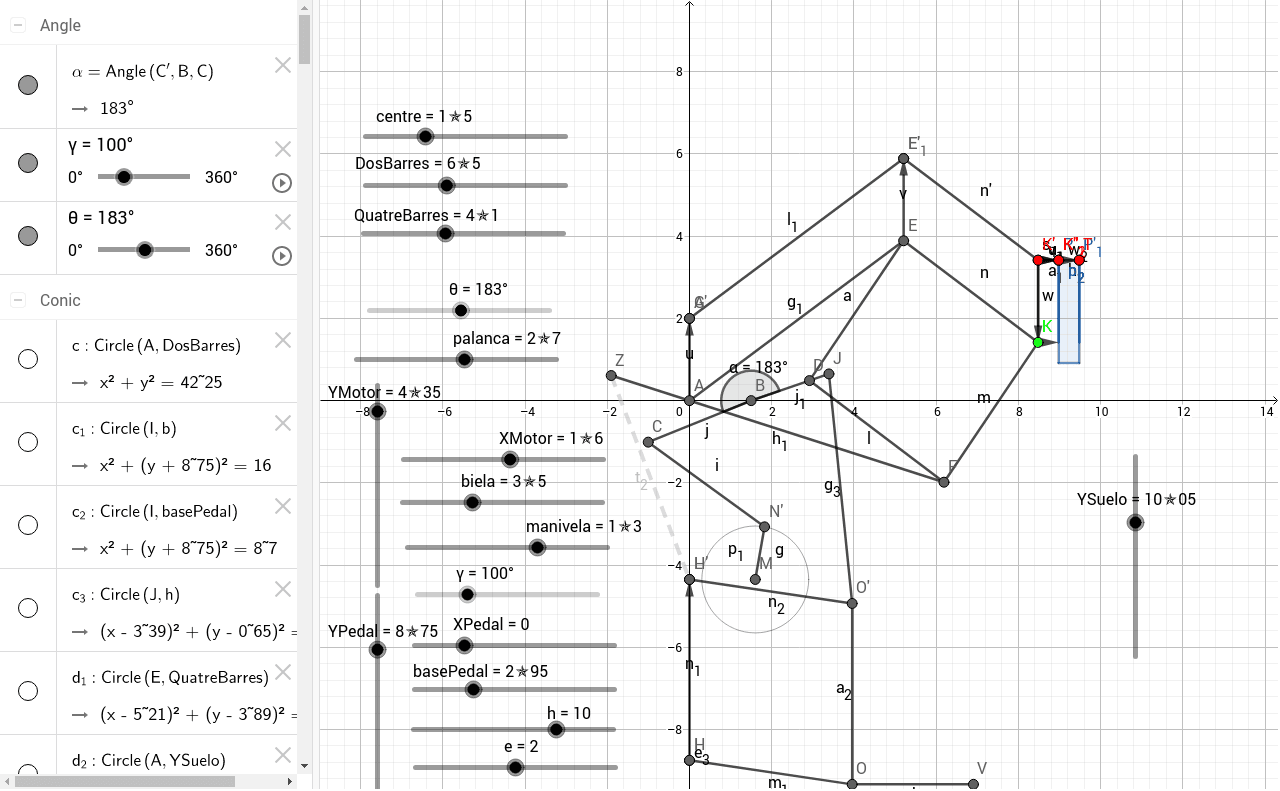

Modification of Peaucellier's mechanism. The function is to simulate a linear forge mechanism to use with your feet.
It has a motor, a pedal, a hammer and the Peaucellier linkage. The motor is only for doing motion. Use the γ angle animation to motion all mechanism.
You can change all distance variables.
