Example 3

A particle moves along a straight line and passes through a fixed point O. Its velocity, v ms-1, t seconds after passing through the point O is given by . (a) Calculate (i) the initial velocity of the particle, (ii) the instantaneous velocity, in ms-1, of the particle when t=5s, (iii) the time, in seconds, when the instantaneous velocity, in ms-1, of the particle is 6ms-1. Solution:

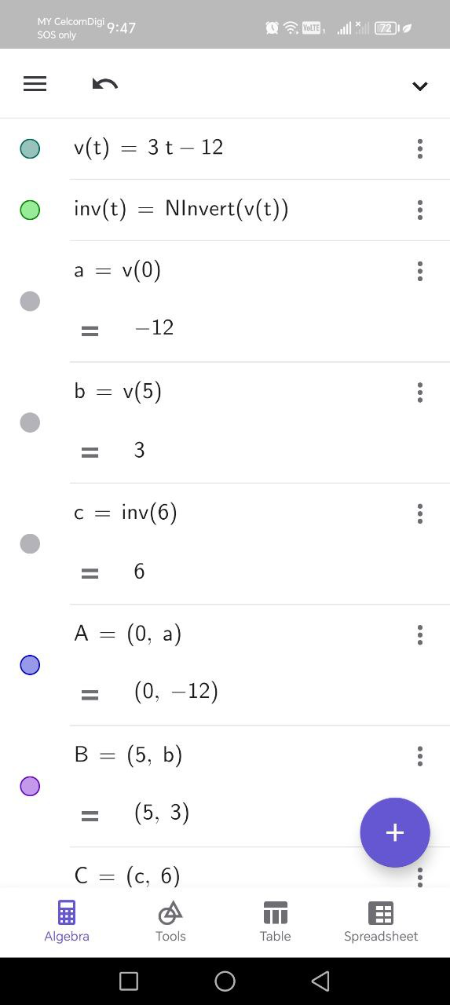

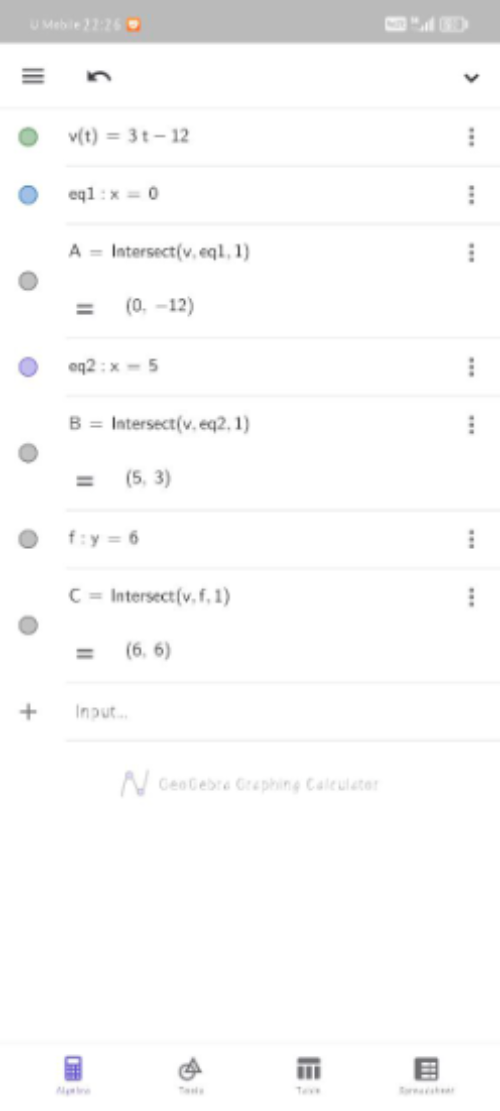

(a)(i) Hence, the initial velocity of the particle is -12ms-1. (ii) Hence, the instantaneous velocity of the particle when t=5 is 3ms-1. (iii) Hence, the time is 6 seconds when the instantaneous velocity of the particle is 6ms-1.

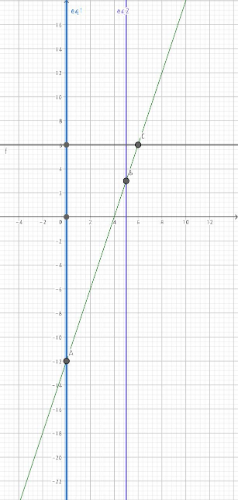

(b) Sketch the velocity-time graph to represent the movement of the particle for .
