transformations by rotation
- Author:
- colinrchambers

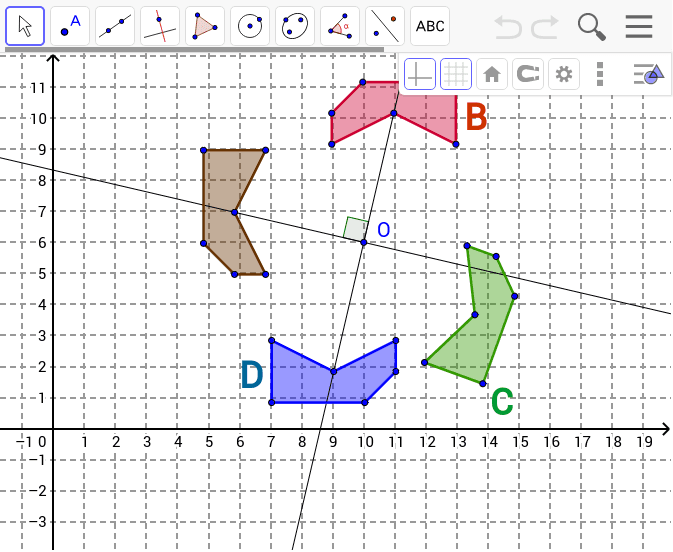

The original shape A is rotated to B which is rotated to C which is rotated to D
You write rotational transformations in this format.
"Shape A-> B is rotated 90⁰ clockwise, centre of rotation (10, 6)"
To draw translations you can (should) use tracing paper. However, in general transformations are best done point by point. For 180⁰ the points are balanced on lines that pass through the centre of rotation
For rotations of 90⁰ the points are balanced either side of the centre of rotation but lines turn 90⁰ at the point of rotation
Are all the rotations clockwise?
What is the rotation B->D?
What happens to D if you move the centre point "O" to left.
The rotation from C -> D is 70 degrees (clockwise) what is the rotation from B to C?
Describe the rotation D->A.
What happens if you move shape A?
