Interpenetration of a cone and cylinder in Multiview
Figure by Ms. Johanna Pék Ph.d.

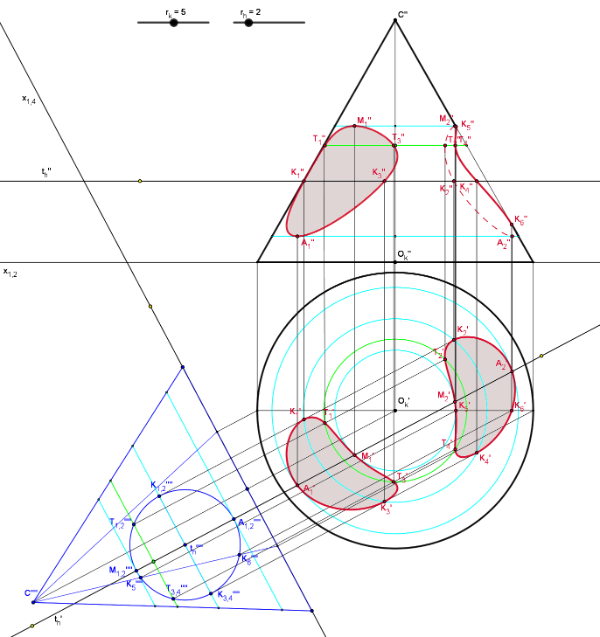

There are a cone and cylinder given in Multiview. The cone is standing on the first image plane. The cylinder is horizontal (its axis is a first principal line) and infite. Construct their intersection curve and represent the lateral surface of the cone after removing the cylinder.
The figure is interactive, but the important points in case of the initial position:
Symmetry points: -
Second contour points of the cylinder (at the same time topmost and bottommost points):
First contour points of the cylinder:
First contour points of the cone: -
Second contour points of the cone:
General intersection points:
The second figure shows the actual visibility. How would the visibility change if the cone was a solid?
