Cable attached to beam.
- Author:
- jang_geogebra

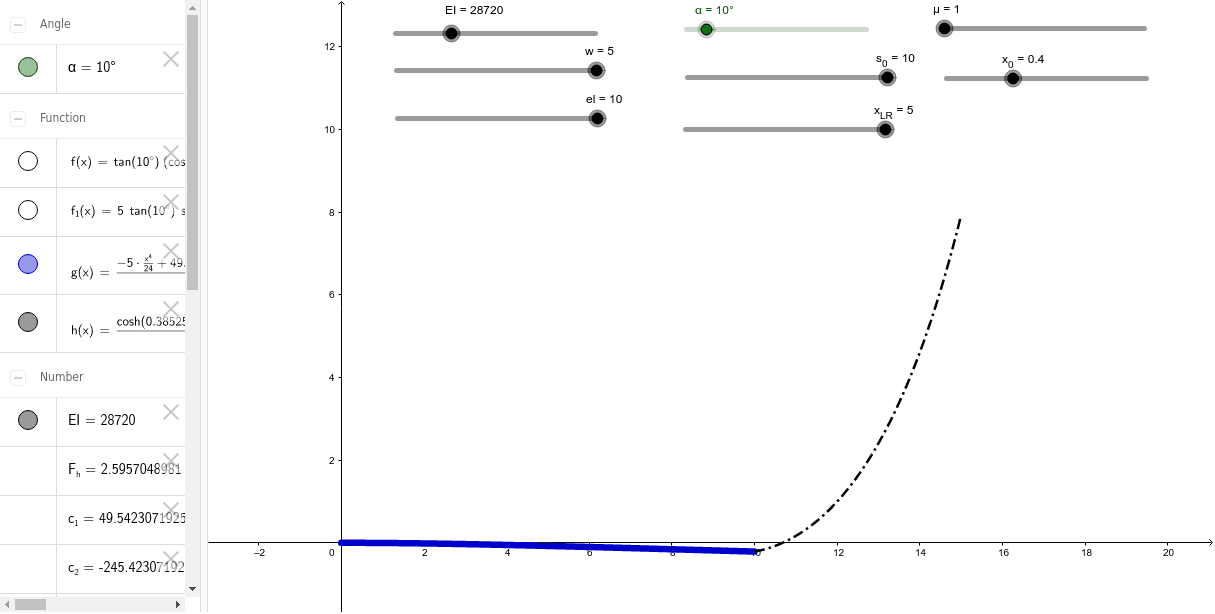

Beam connected to catenary. The link is at the end and the Newton-Raphson iterative method is required to solve for the parameter mu/Fh.
Play around with the parameters, but be aware: s_0 and x_LR must to be realistic: the length of the cable cannot be smaller than the horizontal displacement between its endpoints
