Analysis on functionality of archs and lintels

We can analyze also over the sustentation on lintels and archs, and if the disposal of voussoirs are optimal or not.

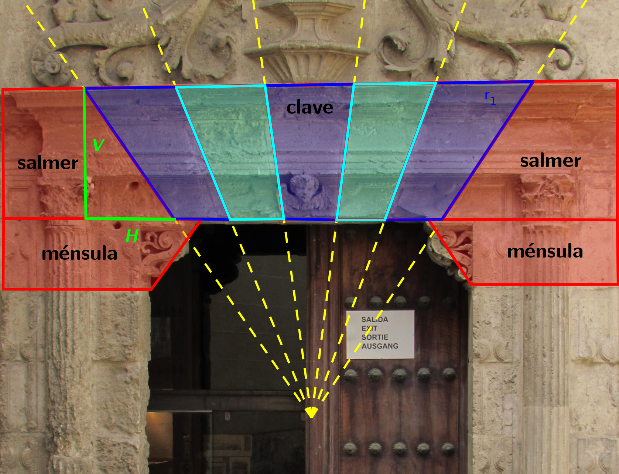

Cathedral. Ecce Homo Gate

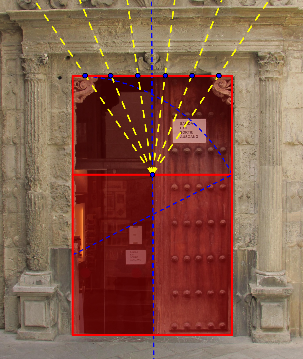

Cathedral. Ecce Homo Gate
That springing stone (enjarje on Spanish) is near optimal. Their surfaces receive almost perpendicular the forces transmitted by the arch

Silk Old Market. Granada
