Synchronous Feedback Phasor Diagram

Author:sergiosevero

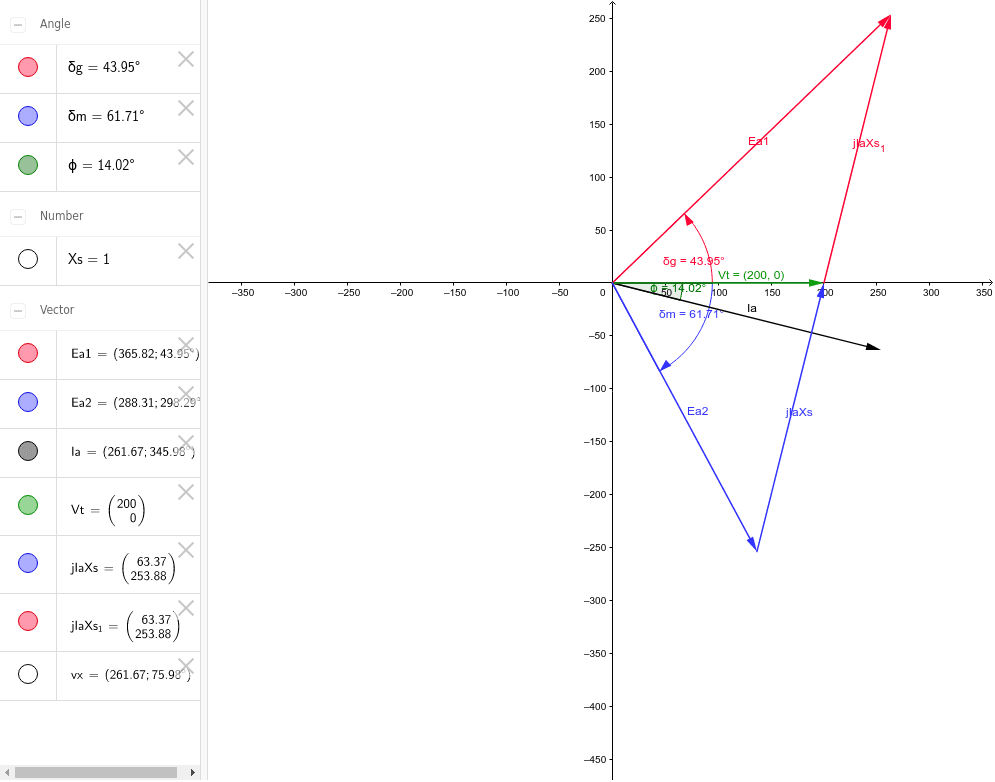

This is the phasor diagram of synchronous feedback as IEEE Std. 115. Vt: Terminal voltage. Ia: Armature current. Xs: synchronous reatance. Ea1, Ea2: Excitation voltage. TIP: Move Ia or Vt!
