Large-Angle Stability - GZ~Theta Curve
- Kalyan Chatterjea

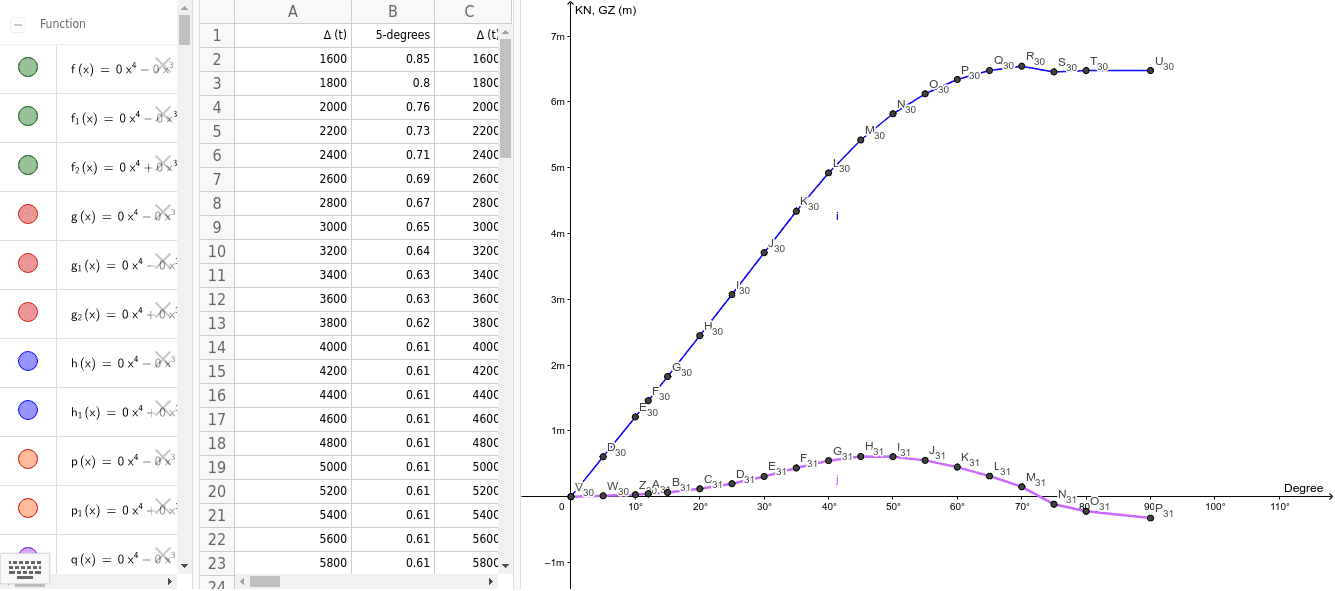

GZ-Theta Statical Stability Curve is shown for MV Reed, for a displacement of 4800 tonne and KG= 6.8m. KN-Cross-Curves are drawn in the main Graphic Window & the GZ~Theta Curve is drawn in the 2nd Graphic Window. The loading conditions could be changed on the Spreadsheet Window to draw other GZ-Theta curves.
Draw the GZ curve for other loading conditions by changing the values on the spreadsheet.
