Torsional Moment - Part 2
- Author:
- gloire

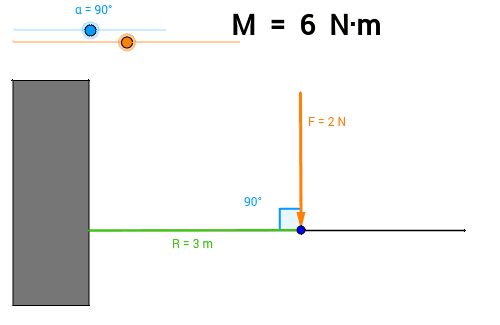

M (Torsional Moment), F (Force), R (Distance between the Point of Rotation and the Point of Force), α (Angle between R and F)
In Torsional Moment - Part 1
If F and R are showing a 90 degree angle, we found out that M, F and R have a linear correlation. The formula we devised was [Nm]
Task 1:
Make a table in your exercise book, have a look at the torisional moment related to the angle.
Task 2:
You know 3 angluar functions and you know the formula M=RF from before. Find the angular function which is used at the calculation for M if we do not have an angular of 90 degrees.
Task 3:
Think about the correlation between R, F, alpha and M.
Try to devise a formula for M, using your observations.
