Single Dwell Mechanism with slider
- Xabier Iriarte

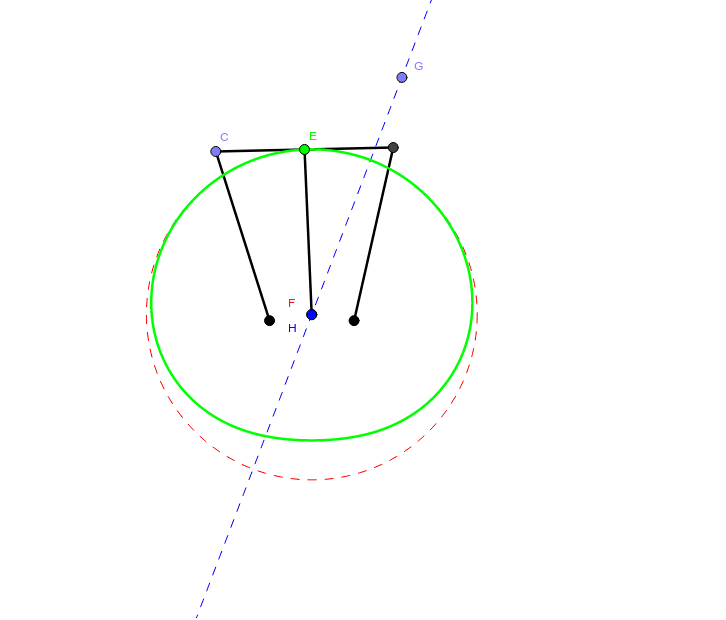

This is a Single Dwell mechanism with a slider. Point H remains stopped while point E is going through a nearly circular piece of its path. Move point C to make the 4 bar (double crank) rotate. Point E (green) will perform a trajectory that will be nearly a circunference.
While point E (green) translates along the piece of the curve that is almost an arc of circunference, point H remains stopped in the center of the circunference, and therefore, the piston (in the slider) remains stopped. Move point G to change the orientation of the slider.
