Synthesis of a Quick Return Mechanism
- Author:
- Xabier Iriarte

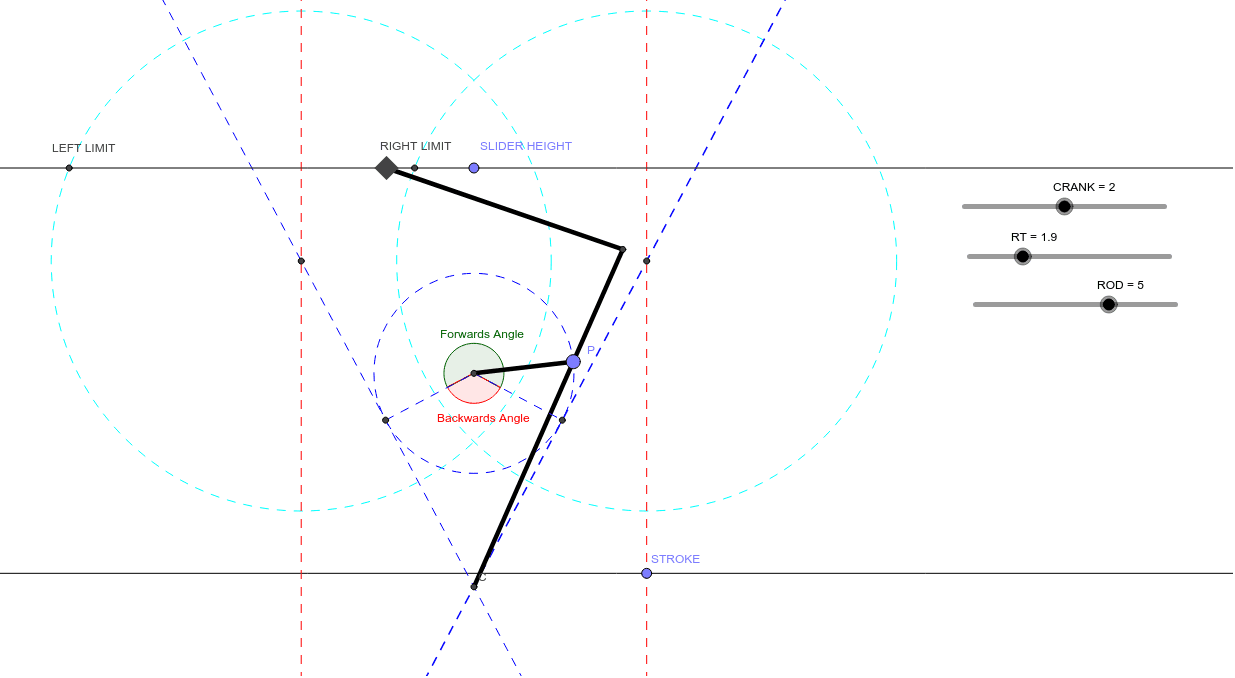

Moving point P the mechanism can be moved.
Since the Backwards Angle and Forwards Angle are different,
this is a Quick Return Mechanism.
The STROKE point controls the stroke of the piston.
The dimensions of the CRANK and ROD can be modified at will.
The Relation-of-Times (RT) can also be changed at will.
The slider can be located at any height.
