CCGPS AA 6.8.1 Example 2
- Walch Education

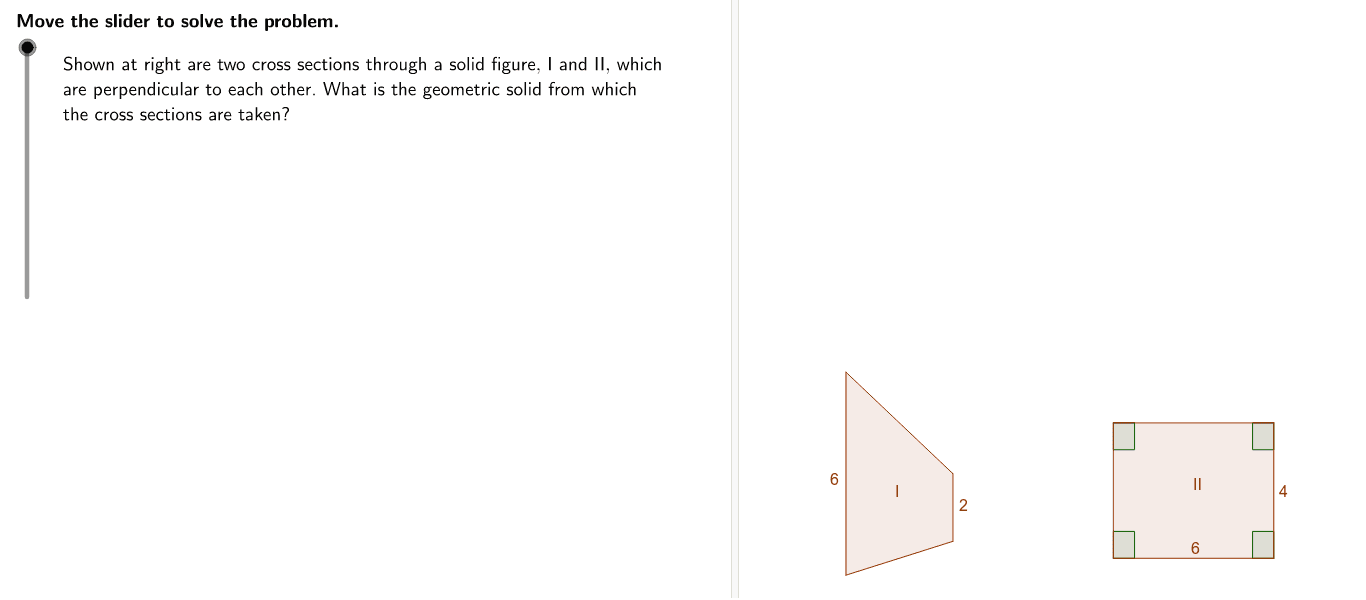

The diagram shows the two cross sections, I and II, of a solid figure. What is the geometric solid from which the cross sections are formed?
- Name the plane figure represented by cross section I.
- Name the plane figure represented by cross section II.
- Describe how the cross sections are oriented with respect to each other and why.
- Name the solid figure implied by the cross sections.
