Single slit diffraction
- Author:
- Chris Hamper

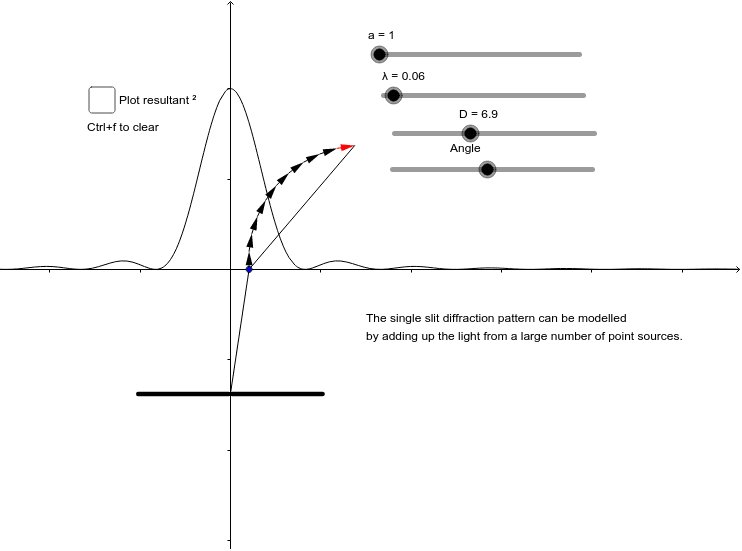

Shows how the single slit diffraction pattern can be modelled by a large number of point sources. Changing the angle shows the vector addition at different positions.
No units are gives and the diagram is not to scale.
The line graph is plotted from the equation for intensity but the blue dots are the length of the resultant amplitude squared.
