Door linkage 2: slider-crank

Auteur :Professor McCarthy

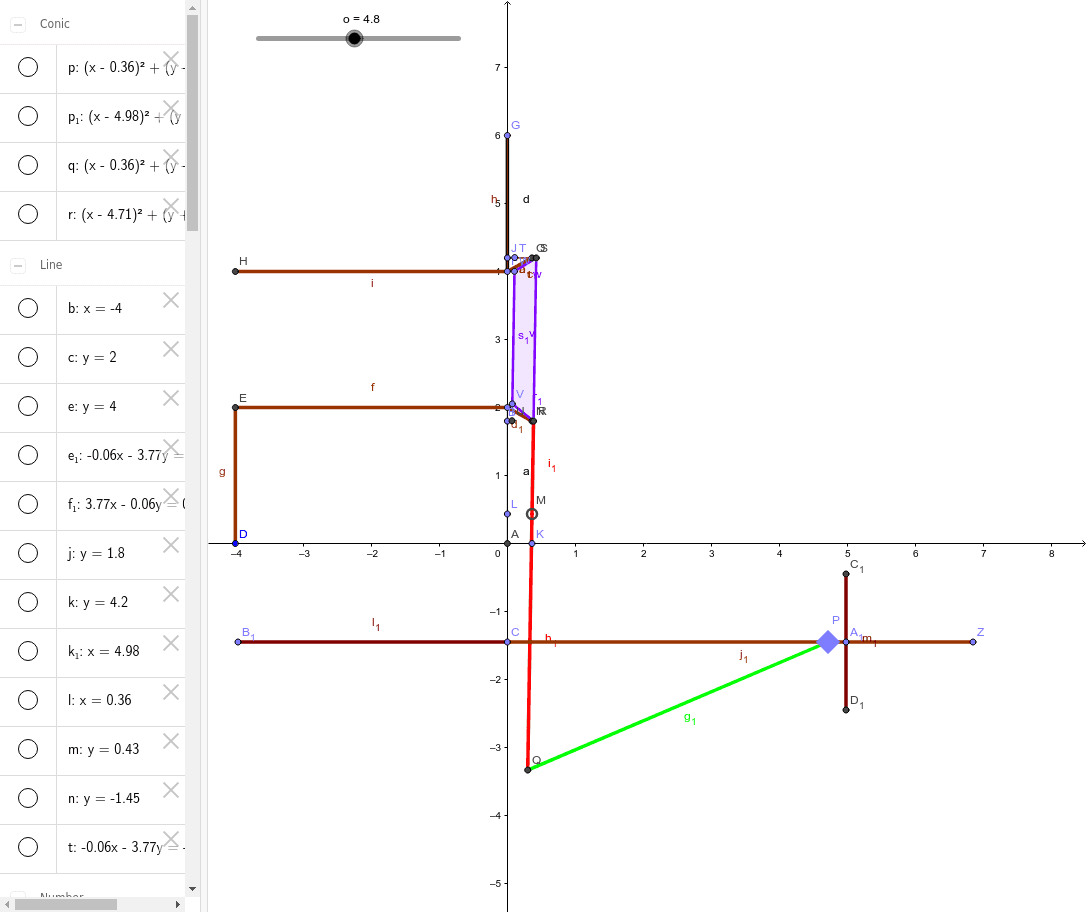

The lever that forms the door can be actuated by connecting a hinged point on the door to a sliding actuator. The connector link is called a coupler, and the system is known as a slider-crank linkage
