GeoGebra Lab #2: Geometry in the World

Topic:
Geometry
In this GeoGebra lab, you will become more familiar with the tools provided by GeoGebra as you explore geometric objects and properties in real-world subjects.

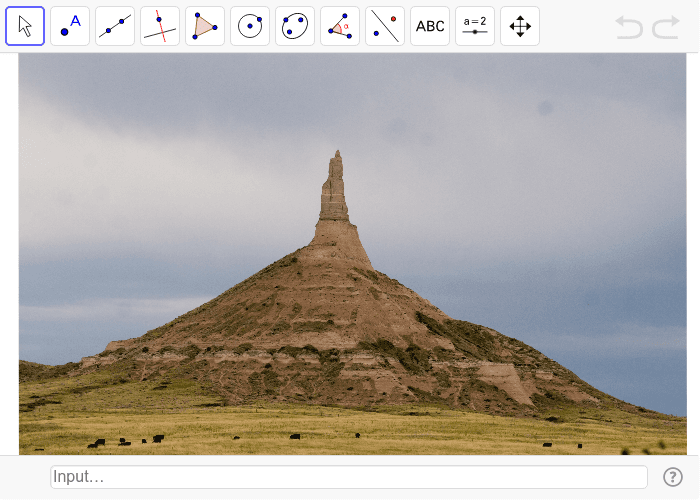

Measuring Angles at Chimney Rock

Use the instructions below to help you measure the angle of elevation from the base to the summit of Chimney Rock in Nebraska. (Image credit: Mike Tigas of Columbia, MO)

Instructions

  1. Toolbar Image Draw the horizon line across the base of Chimney Rock. (Where the green grass meets the brown/red rock.)
  2. Toolbar Image Drag the right point of the horizon line to the rightmost point of the base of Chimney Rock.
  3. Toolbar Image Create a point at the very top of Chimney Rock.
  4. Toolbar Image Measure the angle of elevation by clicking the top point, then the rightmost point, then the third point along the line.
  5. Toolbar Image Drag the number label of the angle up into the blue sky so that you can read it.

What is the angle of elevation of Chimney Rock, according to your construction?

Dividing a pizza into five slices

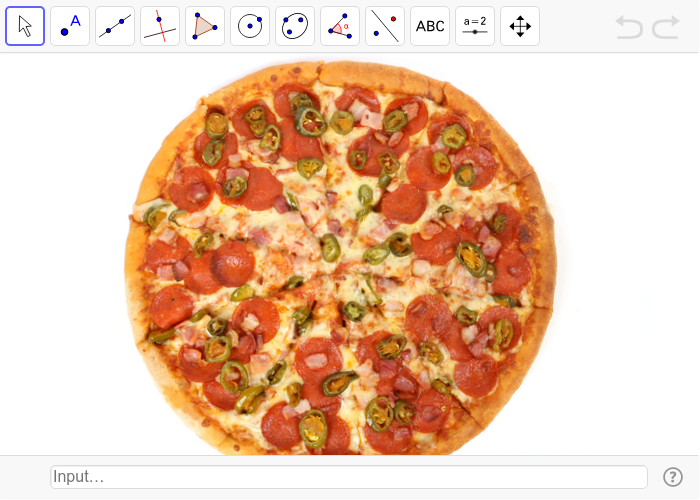

Use the instructions below to help you divide this delicious pizza into five equal slices.

Instructions

  1. Toolbar Image Create a circle with a center at the middle of the pizza and radius so that the circle roughly follows the edge of the pizza.
  2. Toolbar Image If necessary, drag your center and radius-point until you are satisfied with their positions.
  3. Toolbar Image Use the "Angle with a Given Size" tool (DIFFERENT FROM THE ANGLE MEASURE TOOL!) to create an angle whose measure is one-fifth of the size of the whole pizza. First select the point on the edge of the pizza, then the center, then type in the correct angle measure.
  4. Toolbar Image Repeat step 3 until you have 5 points along your circle.
  5. Toolbar Image Draw five line segments from the center of the pizza to the points along the edge to create your slices.

What was the measure that you used to create one slice of pizza?

Jefferson Memorial Scavenger Hunt

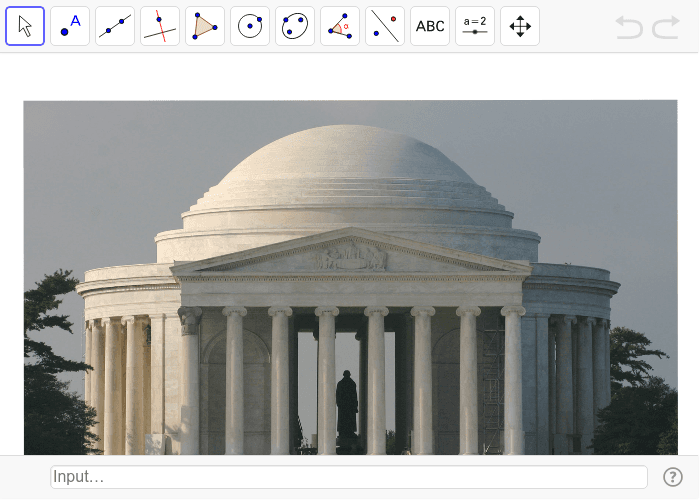

Use the Parallel and Perpendicular Line tools, as described below, to find examples of parallel and perpendicular lines in the Jefferson Memorial Building.

Instructions

  1. Toolbar Image Draw a line on the building to which you would like to draw parallel or perpendicular lines. (For example, you could draw a line along a column.)
  2. Toolbar Image Create a point (NOT on your original line) through which you would like to draw a parallel line. (For example, a point on a different column.)
  3. Toolbar Image Use the parallel line tool to draw a line parallel to your original line that also appears in the picture. (For example, a different column.) To use this tool, select the original line that you drew, then click the point you created not on the original line.
  4. Toolbar Image Create a point (NOT on your original line) through which you would like to draw a perpendicular line.
  5. Toolbar Image Use the perpendicular line tool to draw a line perpendicular to your original line that also appears in the picture. To use this tool, select the original line that you drew, then click the other point.
  6. Toolbar Image Drag your points/lines around the screen until you are confident that your parallel and perpendicular lines line up with features of the Jefferson Memorial.
BONUS:
  1. Toolbar Image Use the semicircle tool to trace a semicircle in the Jefferson Memorial. (You may have to try this more than one time to get the correct half of the circle to show up.)

How do the parallel and perpendicular line tools in GeoGebra illustrate the Parallel and Perpendicular Postulates?

Find the Center of this Monument

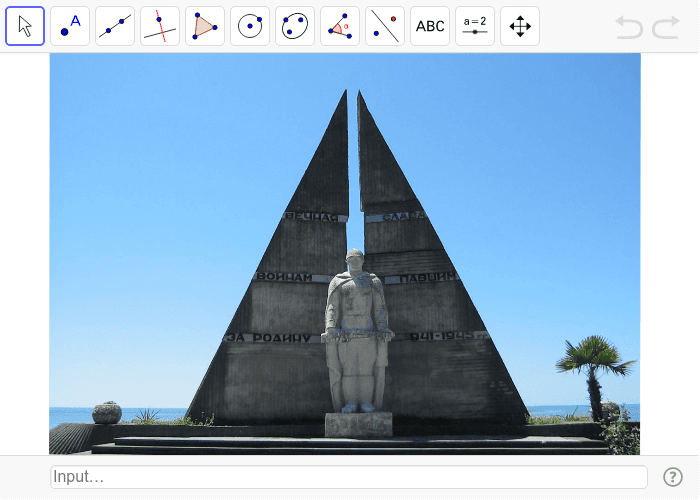

In this task, you will use the instructions below to find a center of the triangular monument in Gagra, Georgia. (As we will learn in Chapter 5, there is more than one center of a triangle!) (Image credit: Vycheslav Stepanyuchenko of Rostov-on-Don, Russian Federation)

Instructions

  1. Toolbar Image Create a triangle that follows the borders of the monument by selecting the three vertices of the triangle shape, then selecting the first vertex again. (For example, click the left point, the top point, the right point, then the left point again.)
  2. Toolbar Image Use the Perpendicular Bisector tool to bisect each of the three sides of the triangle.
  3. Toolbar Image Use the intersect tool to choose the intersection of your perpendicular bisectors.

What do you notice about your three perpendicular bisectors? (Specifically, I'm asking about the point of intersection here.) Do you think this is true for all triangles, or just the special shape of this monument?
