# Multi-Loop Circuit

- Author:
- Dave Nero

## Instructions

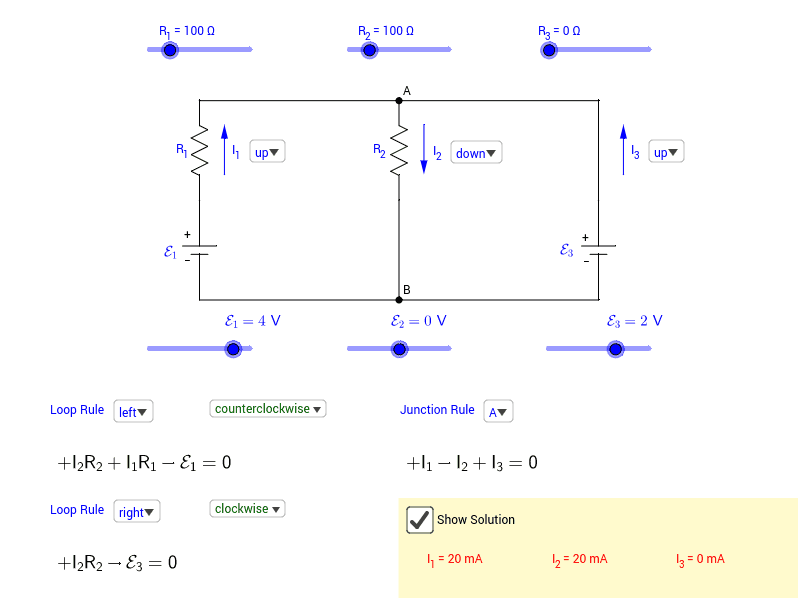

This simulation applies Kirchoff's circuit rules to a multi-loop circuit with three branches. The resistance of each resistor and the emf of each battery can be changed using the sliders. Set a resistance or emf to zero to remove it from the circuit. Positive emf represents a battery with positive terminal upwards, while negative emf represents positive terminal downwards.
The initial guess for the direction of each current can be selected from the drop-down list. Similarly, drop down lists are used to select where to apply Kirchoff's rules.

- What effect does changing the initial guess for the direction of a current have on the final solution?
- What effect does changing a loop direction have on the produced equation?
- Some combinations of resistance and emf result in an infinite or undefined current. Why?
- Can you find a combination of values that results in zero current throughout the entire circuit (with at least one nonzero emf)?
