Four bar linkage inflection circle
- Ettore Pennestri'

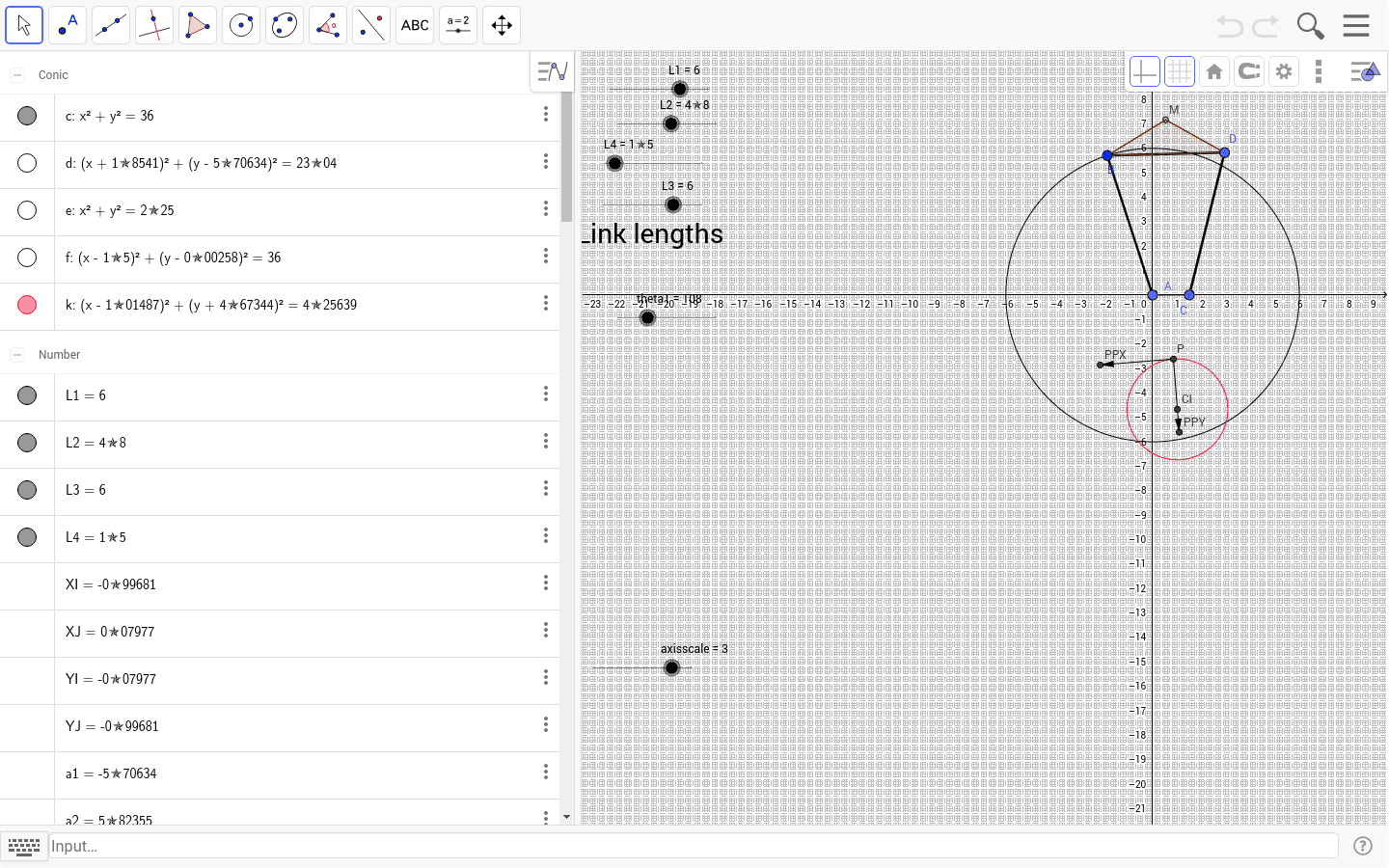

Given a four bar linkage, draw the inflection circle. The coupler point M on the inflection circle will have an inflection in its trajectory. You can adjust link lengths, driving link angular position, position of M on the slider.
Check that the trajectory of point M (when on the inflection circle) has an inflection point.
